HEAT RECOVERY VENTILATOR VT125
1.KCVENTS VT125 HRV – High-Efficiency Heat Recovery Ventilator.
Advanced technologies are used to recover heat, reduce costs, and improve indoor air quality.
2. Quiet Operation: Equipped with an EC motor, it ensures low noise and high efficiency, making it ideal for homes and offices.
3.Compact: Slim design fits ceilings, walls, or cabinets in small to medium spaces.
4.Advanced Filtration: The VT125 includes a pre-filter and optional HEPA and carbon filters to remove dust, allergens, and contaminants.

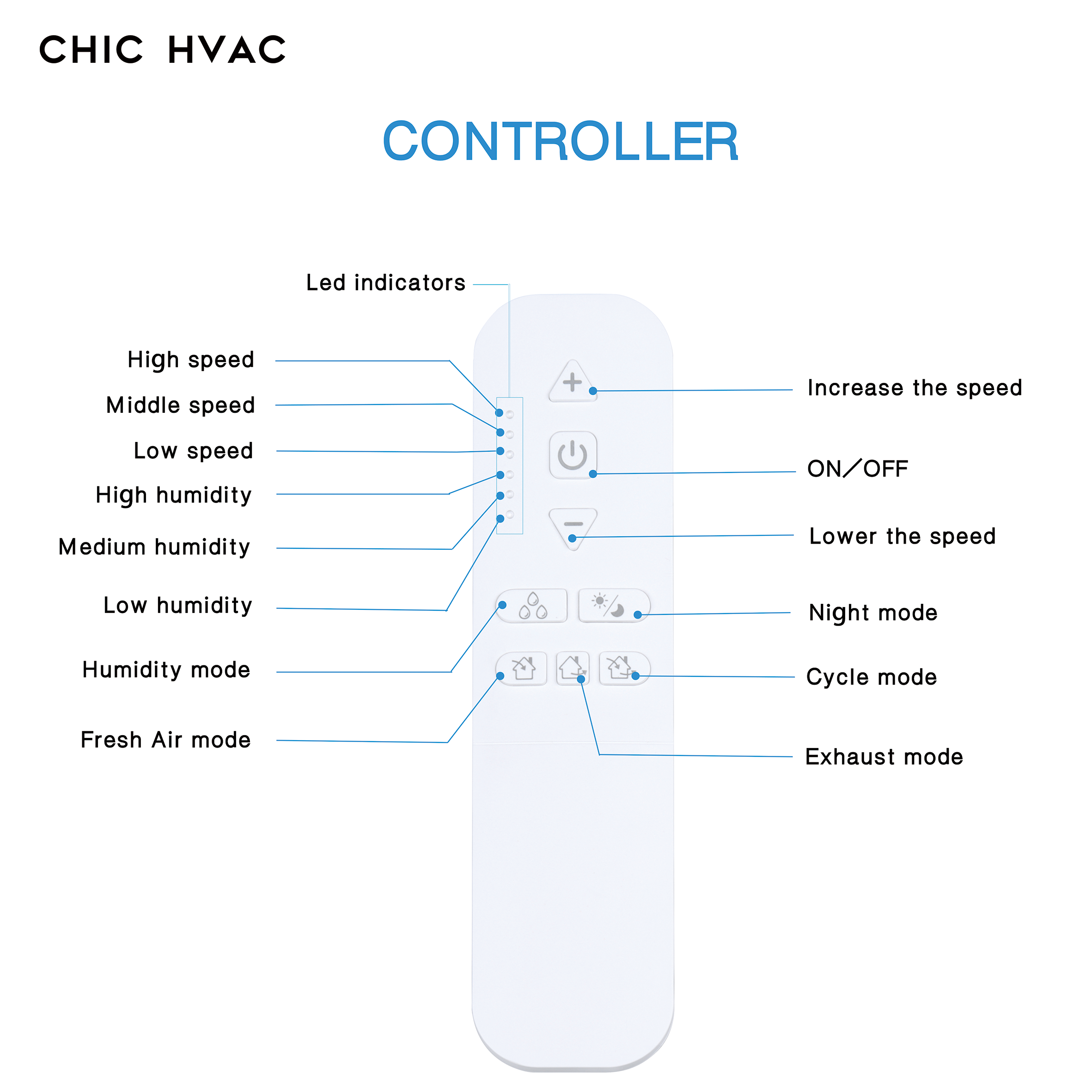

5.Simple Controls and Low Maintenance: Designed with ease of use in mind, the VT125 features an intuitive interface for effortless operation and low maintenance. Ideal for anyone looking for a hassle-free HRV system that delivers optimal heat recovery and air circulation.

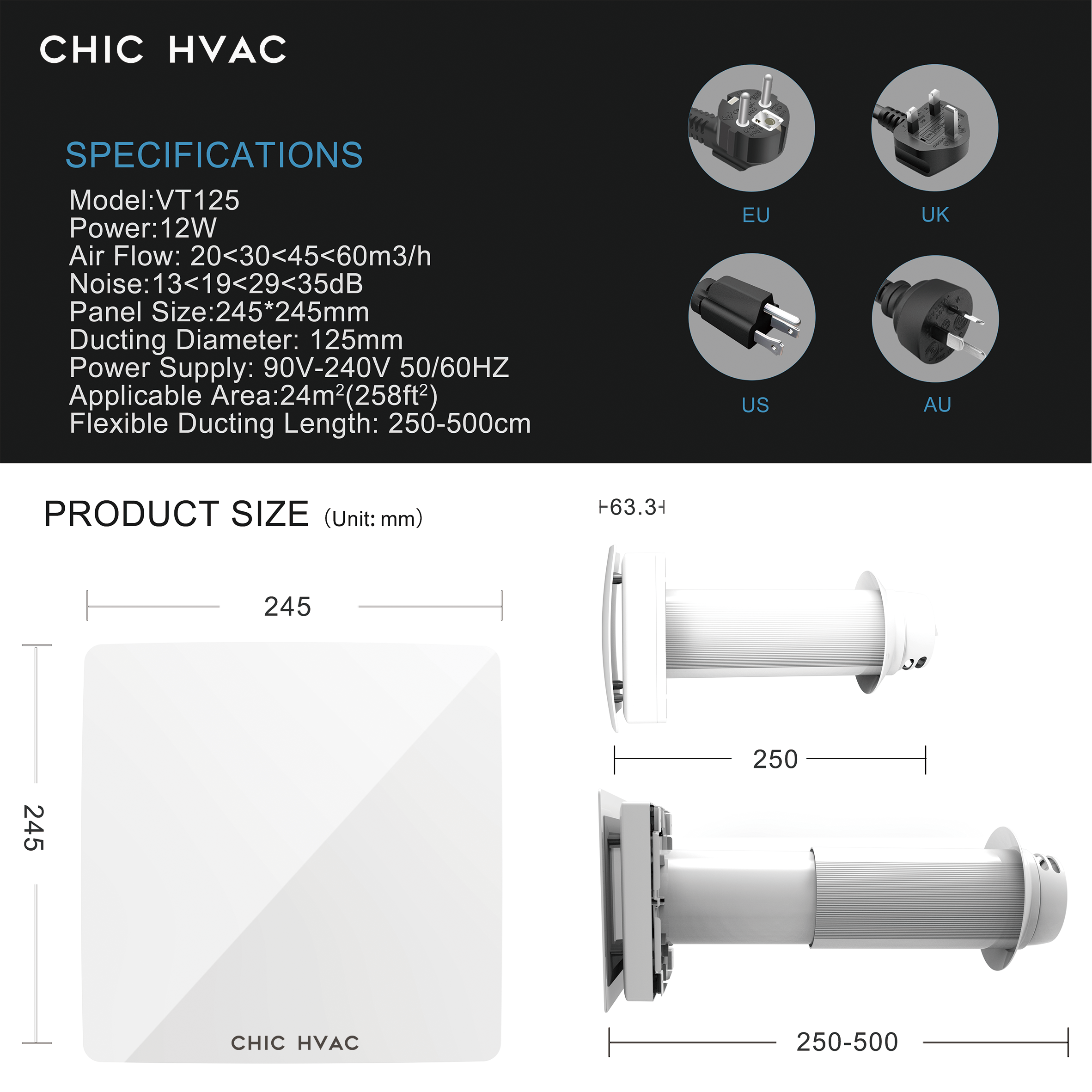

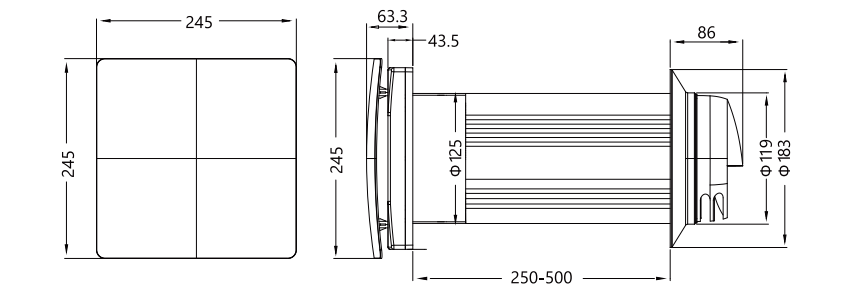

Dimensions (unit:mm):
Parameter table:
Speed | Sleep | Ⅰ | Ⅱ | Ⅲ |
---|---|---|---|---|
Voltage | 12VDC Or 100 - 240V 50 - 60Hz | |||
Ventilator Total Power (W) | 5.5 | 6.0 | 8.5 | 12 |
Ventilator Current (A) | 0.035 | 0.040 | 0.050 | 0.080 |
Airflow (m³/h) | 20 | 30 | 45 | 60 |
Speed (RPM) | 1000 | 1200 | 2050 | 2900 |
Transported Air Temperature | -20°C (-4°F) to +50°C (122°F) | |||
Heat Exchange Efficiency | up to 90% | |||
Heat Exchanger core | Ceramic |
