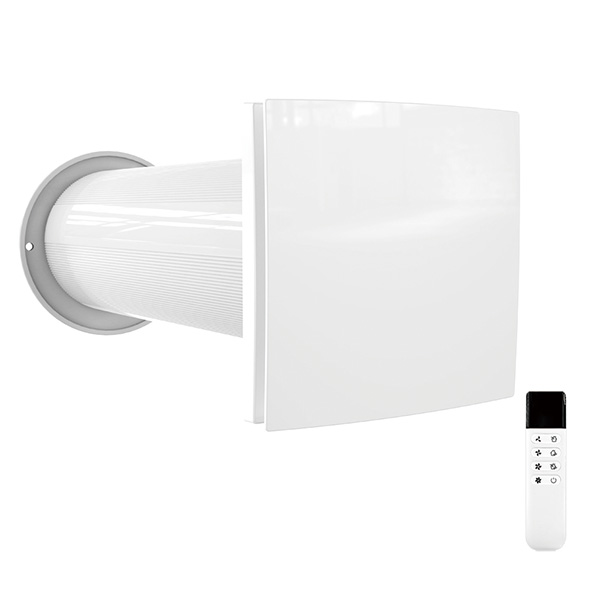

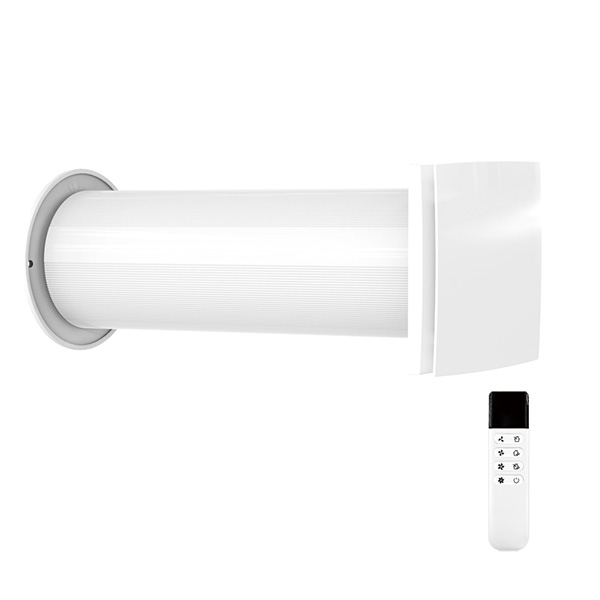

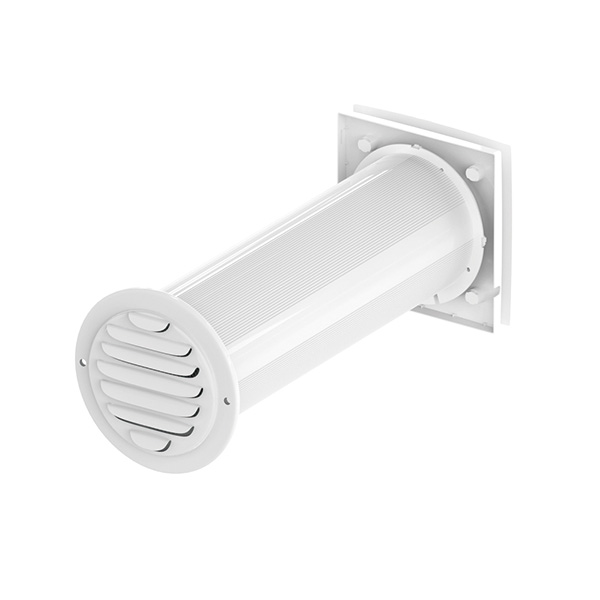

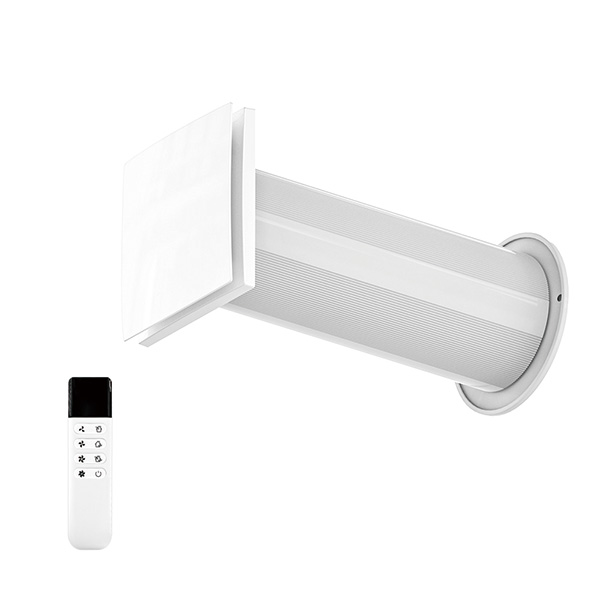

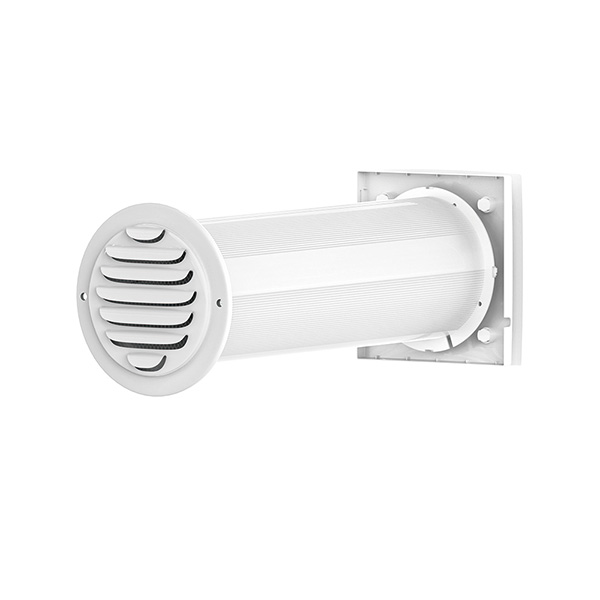

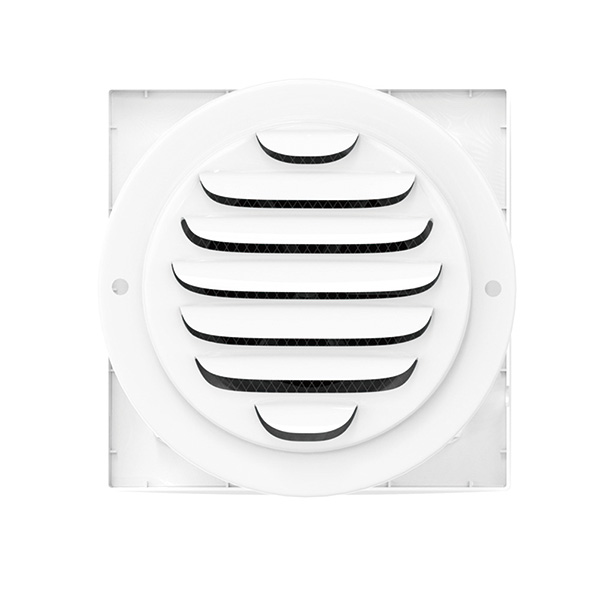

HEAT RECOVERY VENTILATOR VT100

1.High Efficiency Heat Recovery Ventilator (Basic)
Energy-Efficient Heat Recovery: Efficiently recovers heat from exhaust air, reducing energy consumption and ensuring consistent indoor air quality. It is a cost-effective solution for energy conservation in homes and small commercial spaces.

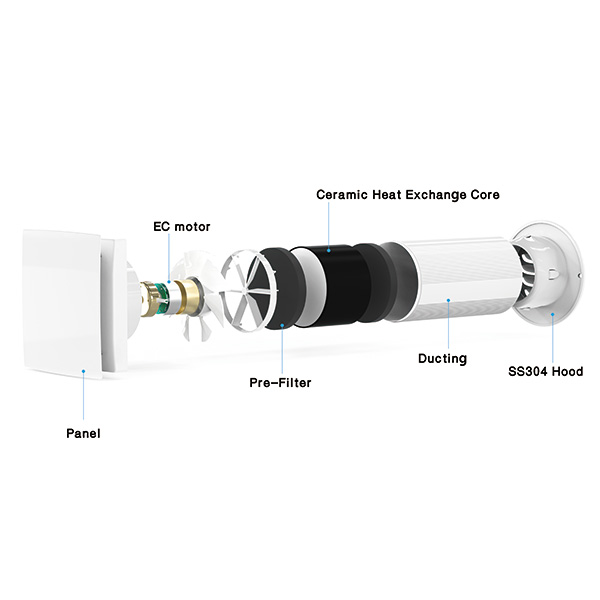

2.Quiet Operation: Designed with a low-noise EC motor, it ensures quiet ventilation without sacrificing performance.

3.Compact and Flexible Installation: Boasts a compact design that can be easily installed on walls or tight spaces.

4.Reliable Air Filtration: The VT100 is equipped with a pre-filter that removes dust and larger particles, maintaining clean and fresh air.

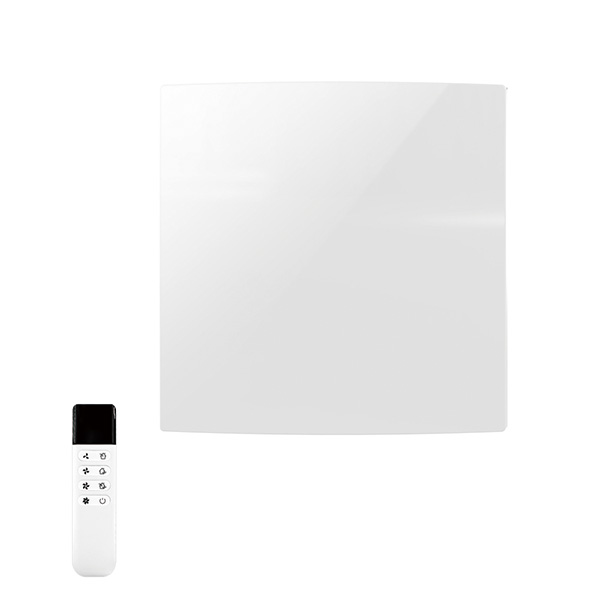

5.User-Friendly Controls: The VT100 has a user-friendly interface with intuitive controls for easy maintenance.



Enquiry Catalog Manual

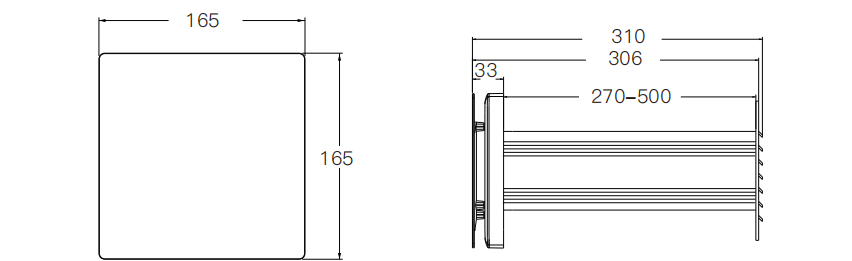

Dimensions (unit:mm):

Parameter table:

Speed Sleep I II III
Voltage 100 - 240V 50 - 60Hz
Max Power 5W
Ventilator Total Power (W) 2.5 3.0 3.5 3.8
Airflow (m³/h) 20 30 40 50
Speed (RPM) 1000 1500 2000 2500
Transported Air Temperature -20°C (-4°F) to +50°C (122°F)
Heat Exchange Efficiency up to 90%
Heat Exchanger core Ceramic
