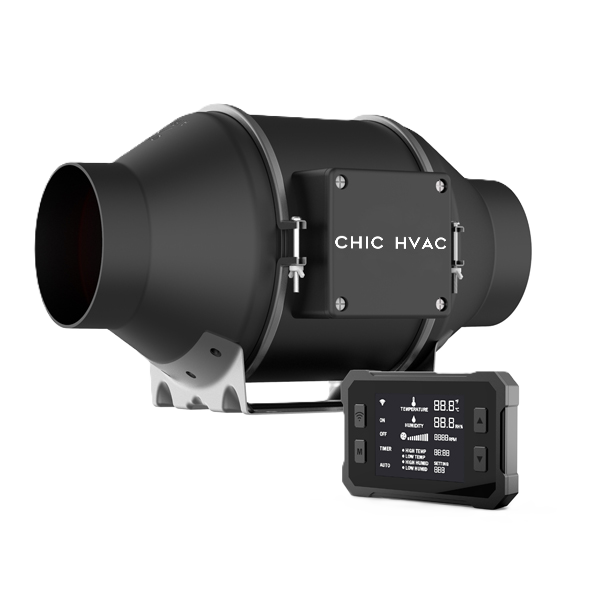

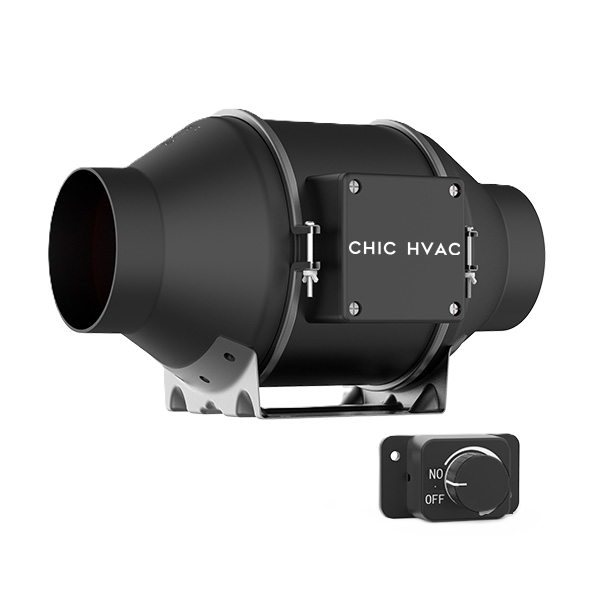

Inline Duct Fan
- Francis Impeller: Efficient airflow and moderate static pressure for intake or exhaust applications for optimal circulation and adequate ventilation of the ventilation system.
- Ultra-quiet performance and strong airflow, vibration damping and aerodynamically balanced design ensure a quiet environment and minimal operating noise.
- Installation flexibility: can be installed anywhere within a circular piping system; Optional mounting brackets are available. Whether you're a DIY enthusiast or a professional installer, assembly is quick and easy.
- Cost-Effective: The robust construction and high-quality materials ensure durability and reliability, guaranteeing long-lasting performance. The motor and impeller assembly can be easily cleaned and serviced.
- High energy savings: Reliable and cost-effective shaded pole or capacitive running motors designed for continuous operation. Maintain efficient ventilation while reducing energy consumption, saving you money.

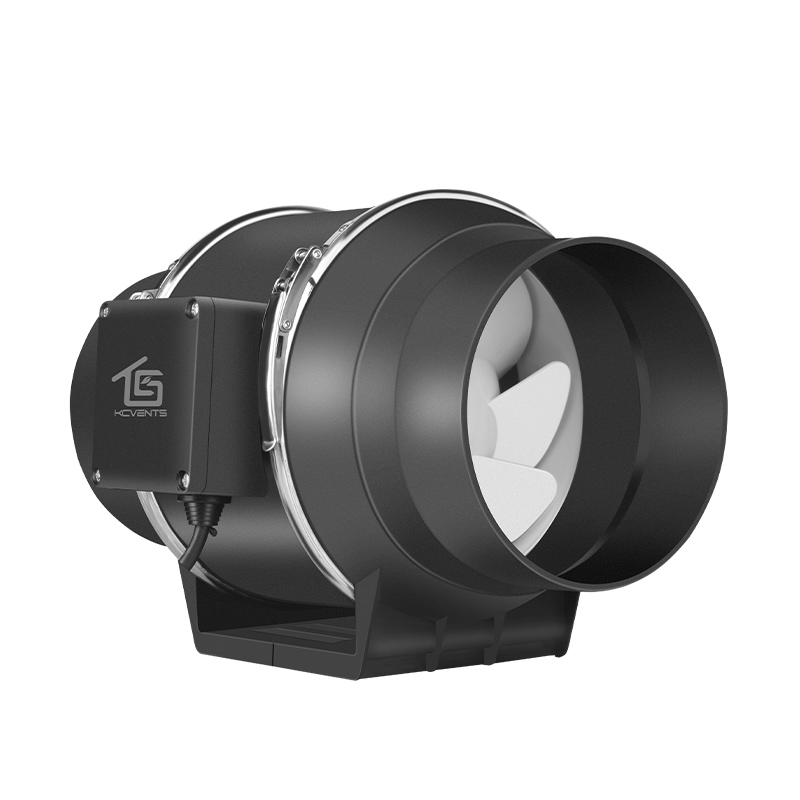

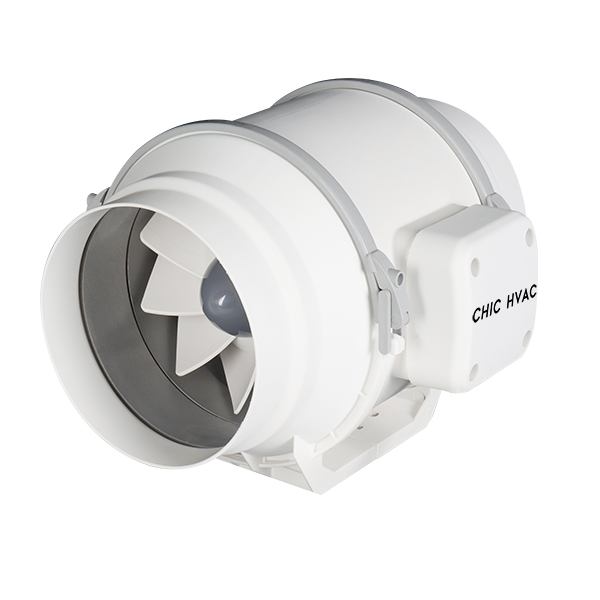

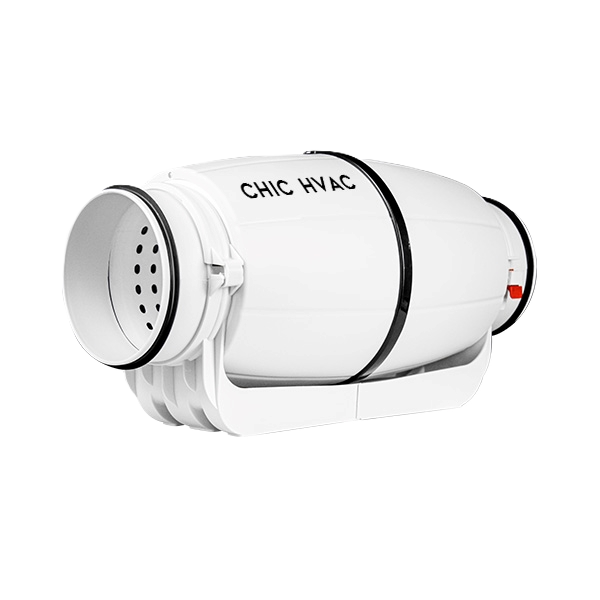

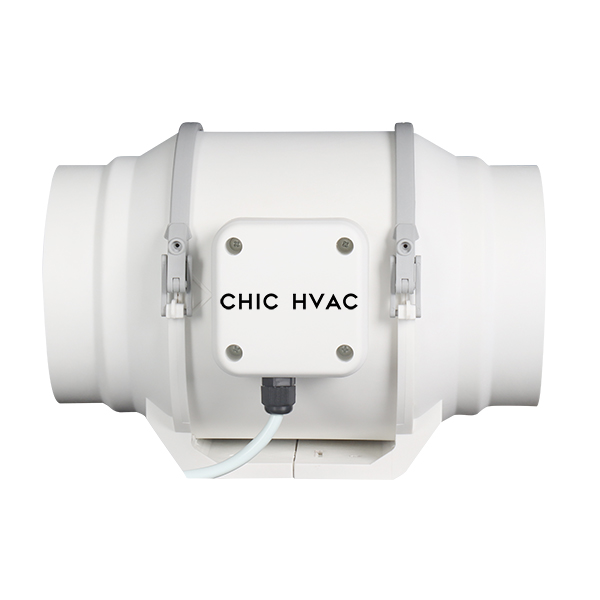

The KC Mixed Flow Series is a high performance,low profile and compact in-line mixed-flow fans. With 5 models in the Series they match standard duct sizes from 100 to 315mm diameter. Suitable for mounting in any position.
nmit:mm

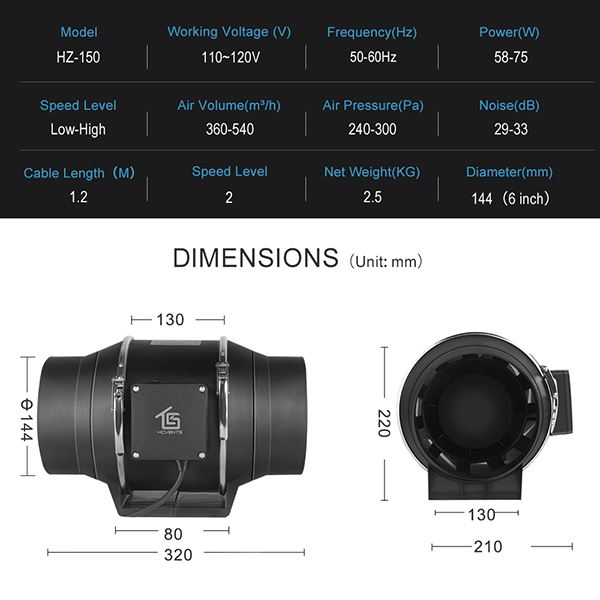

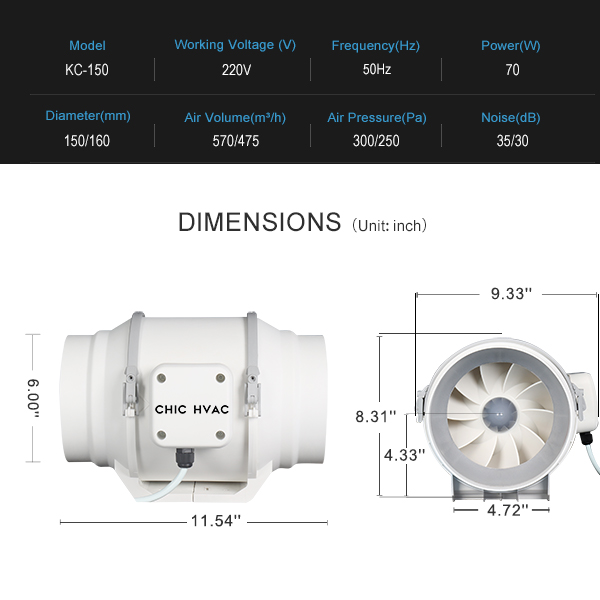

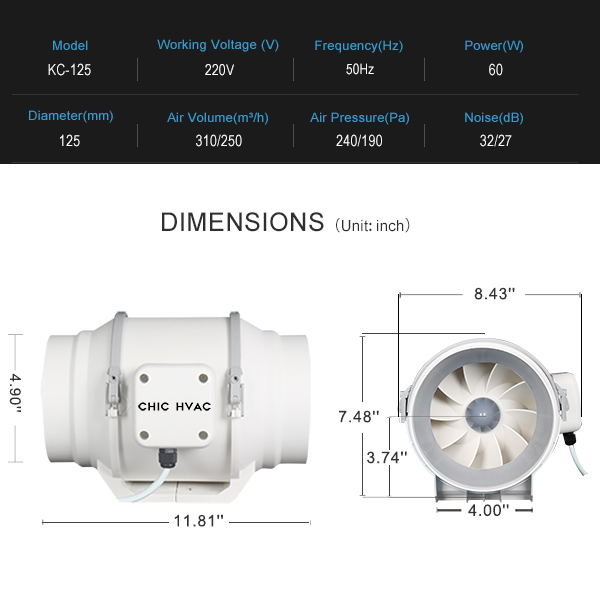

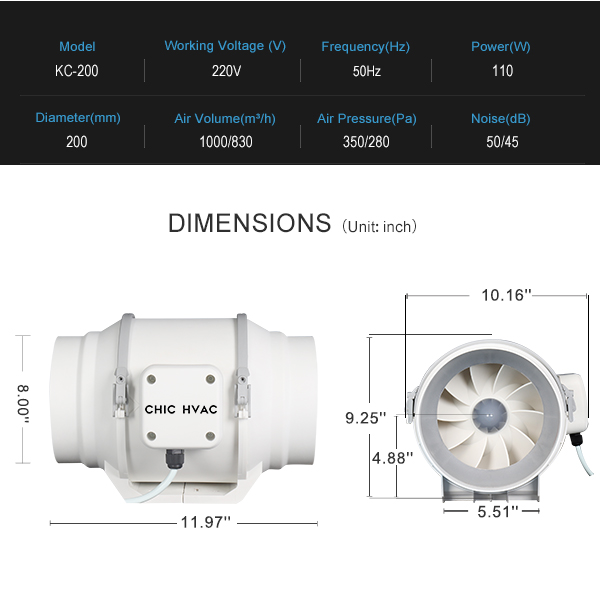

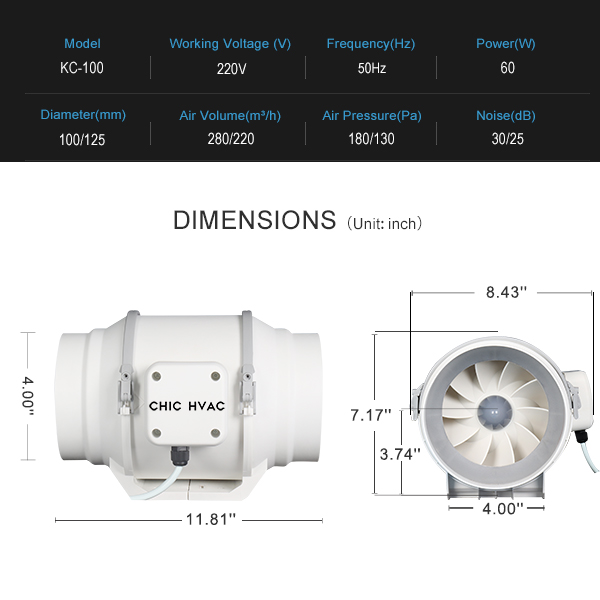

Model | A | φ B | C | D | E | F | G | H | H1 |
---|---|---|---|---|---|---|---|---|---|
KC - 100 | 300 | Φ100 | 100 | 214 | 62 | 60 | 7x5 | 182 | 95 |
KC - 125 | 300 | Φ125 | 95 | 214 | 80 | 60 | 7x5 | 190 | 95 |
KC - 150 | 293 | Φ150 | 120 | 237 | 72 | 70 | 7x5 | 211 | 110 |
KC - 200 | 304 | Φ200 | 140 | 258 | 78 | 85 | 8×6 | 235 | 124 |
KC - 250 | 383 | Φ250 | 180 | 298 | 119 | 92 | 11×8 | 291 | 152 |
KC - 315 | 413 | Φ315 | 220 | 364 | 127 | 140 | 11×8 | 359 | 189 |
Description (Mobile terminal:Slide the sheet to the right to see more)
Model | Voltage (V/Hz) | Power (w) | Speed | Current (A) | Air Flow (m³/h) | Air Pressure (Pa) | Noise (dB) | Size Φ (mm) | Reference Area (m²) | Weight (kg) |
---|---|---|---|---|---|---|---|---|---|---|
KC-100 | 220/50 | 60 | H | 0.2 | 280 | 180 | 30 | 100/125 | 8-16 | 1.8 |
L | 0.174 | 220 | 130 | 25 | ||||||
KC-125 | 220/50 | 60 | H | 0.2 | 310 | 240 | 32 | 125 | 8-18 | 2 |
L | 0.174 | 250 | 190 | 27 | ||||||
KC-150 | 220/50 | 70 | H | 0.31 | 560 | 300 | 35 | 150/160 | 18-36 | 2.2 |
L | 0.264 | 475 | 250 | 30 | ||||||
KC-200 | 220/50 | 110 | H | 0.42 | 980 | 350 | 50 | 200 | 34-78 | 3.1 |
L | 0.409 | 830 | 280 | 45 | ||||||
KC-250 | 220/50 | 130 | H | 0.812 | 1700 | 550 | 60 | 250 | 42-84 | 7.0 |
L | 0.65 | 1200 | 400 | 54 | ||||||
KC-315 | 220/50 | 230 | H | 1.33 | 2900 | 700 | 66 | 315 | 60-120 | 9.7 |
L | 1.1 | 2400 | 500 | 61 |

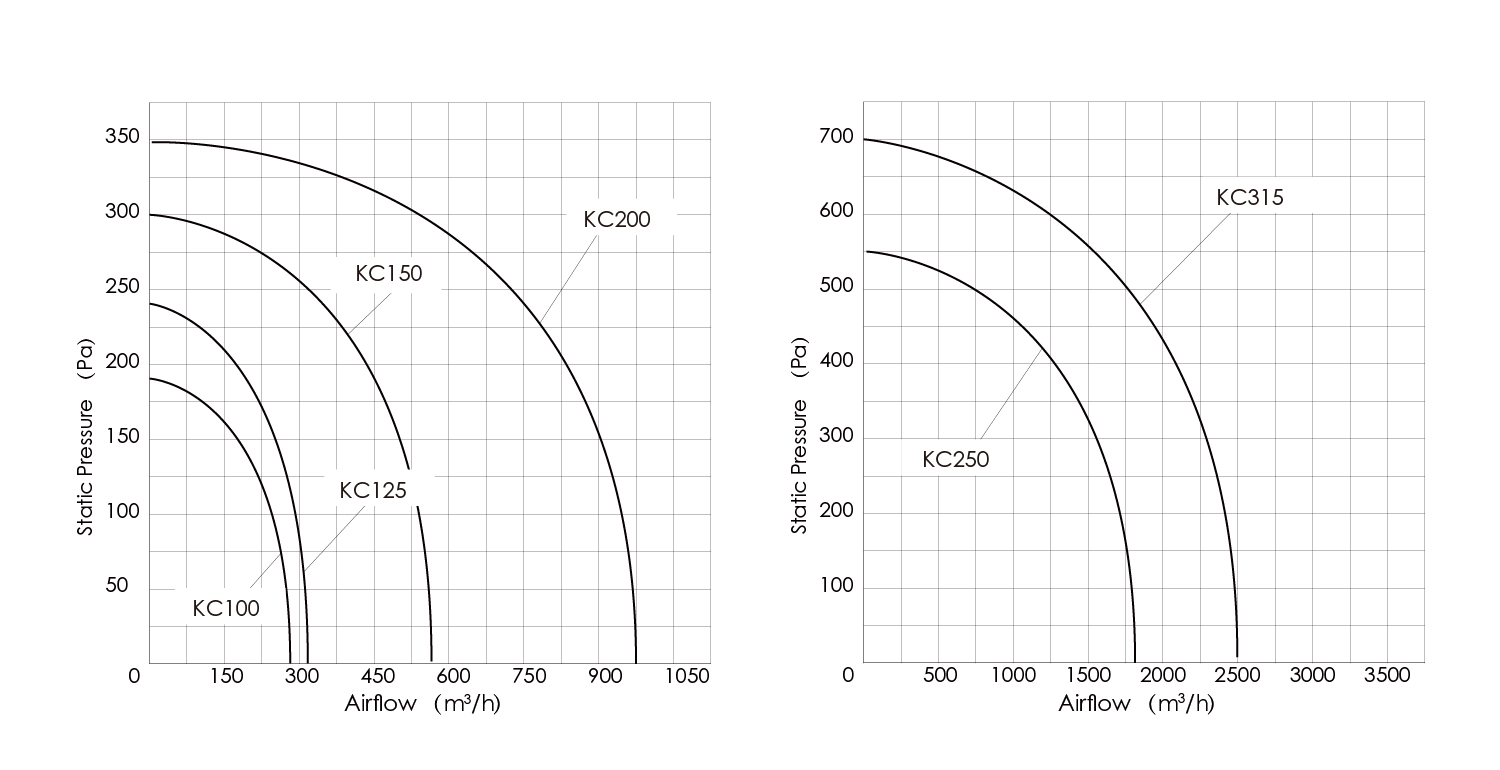

Curver:

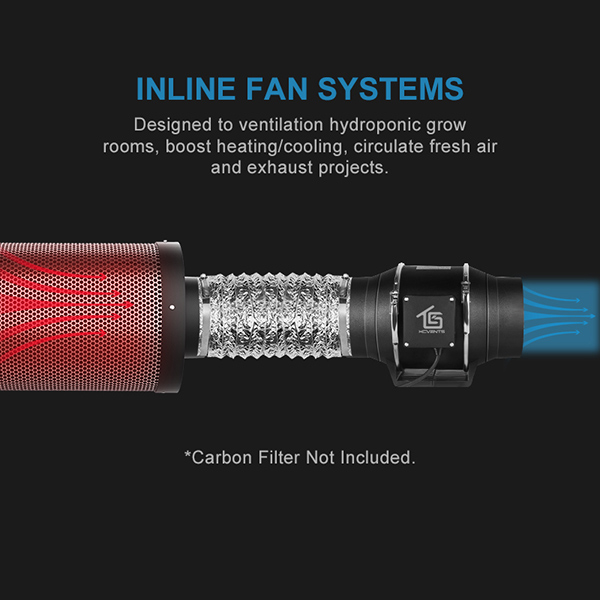

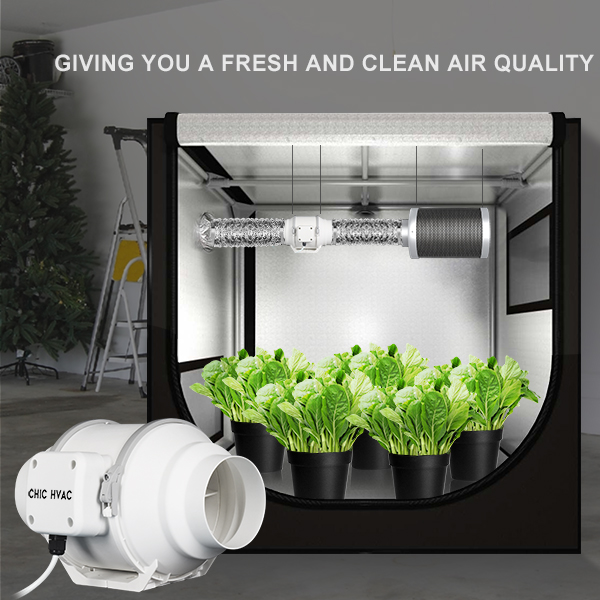

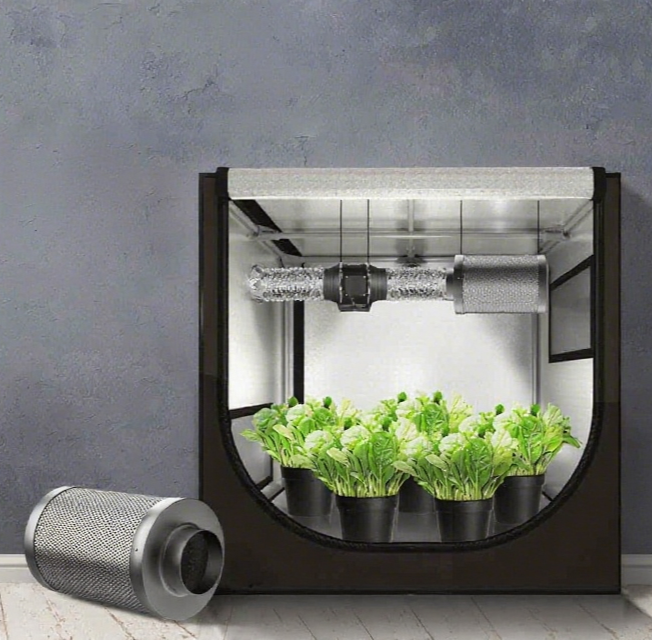

Application scenario
Designed for the ventilation of toilets, bathrooms, ensuites, laundries and kitchens in homes, hotels, apartments and commercial buildings. Suitable for both supply and exhaust air applications and the transfer of warm and cool air from one room to another.
Installation and use characteristics

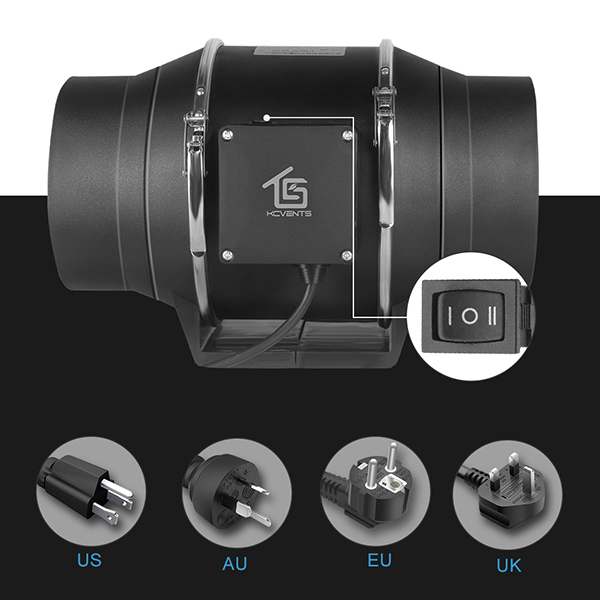

High performance mixed-flow impeller. Fans can be easily removed for maintenance or repair without disturbing the duct system via specially designed support brackets. All models are designed for direct connection to standard diameter circular ducting. A mounting foot is incorporated into the fan housing design which assists with installation. Includes plug and lead for easy installation. Wired in high speed.

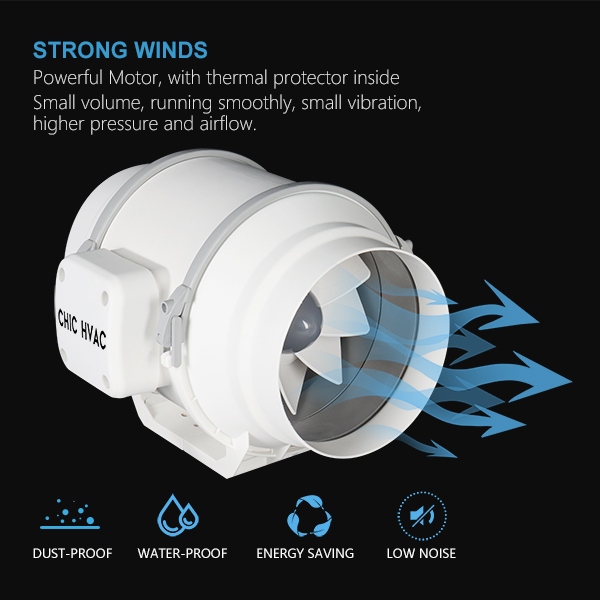

Product function effect
1.Fan body is made of environmental protection material with beautiful lines and light weight, double insulation.
2.Fan blade is designed according to hydromechanical principle to reach the optimal airflow and air pressure, high efficiency working, low energy consumption and low noise.

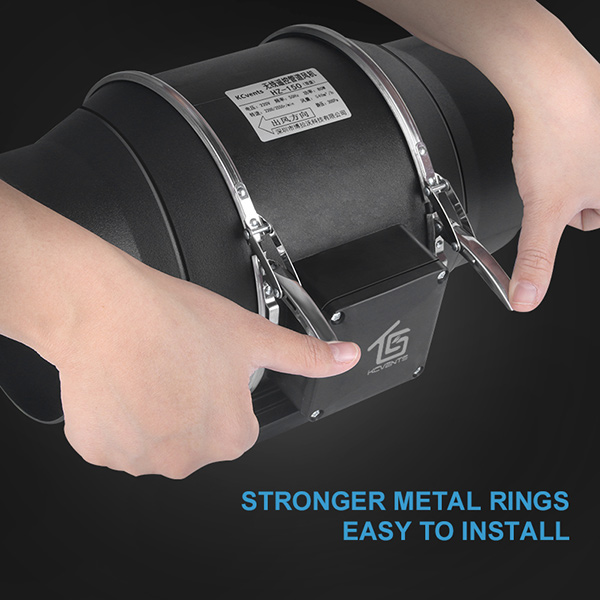

3.Special design of joint to facilitate installation and dismounting; Easy installation and maintenance.
4.Outer rotor motor inside, with Japanese brand NMB ball bearing, long working life over 50000 hours.
5.Protection class: IP44.
6.Can be designed with user friendly features such as time delay, temperature sense, humidity sensor or other customized functions.
7.Operating temperature range: -20ºC~60ºC.
