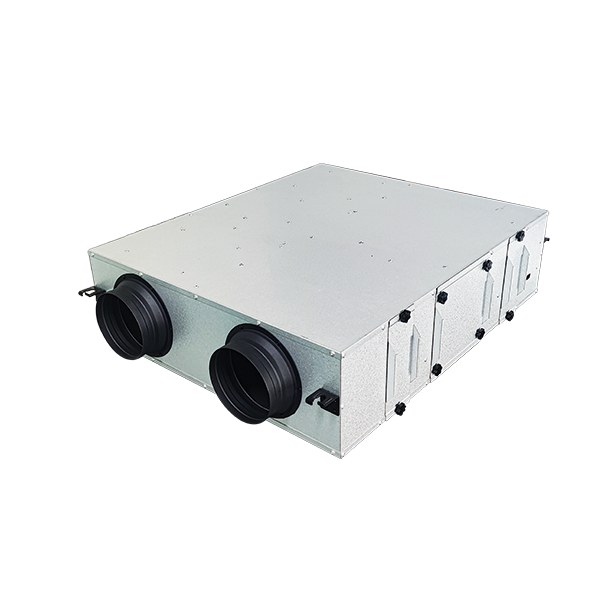

KCQR Energy Recovery Unit


  1. Counter-flow heat exchanger with up to 90% thermal efficiency.
  2. Internal acoustic cotton to reduce noise level.
  3. Low-consumption motor.
  4. Centrifugal forward curved impeller
  5. Galvanised sheet steel body
  6. 4 nozzles Ø100 mm. / Ø150 mm. / Ø200 mm.

Enquiry Catalog Manual

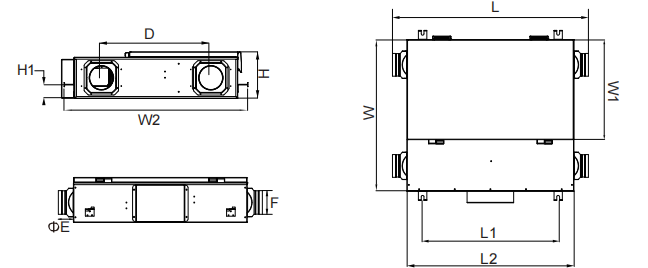

unit:mm

Model L L1 L2 W W1 W2 H H1 D E F
KCQR - 150 867 746 602 816 460 854 222 11.5 563 62 Φ100
KCQR - 350 893 746 602 816 460 854 252 11.5 563 75 Φ150
KCQR - 500 885 746 602 816 460 854 282 11.5 563 71 Φ200

Parameter table:

Model Voltage (v - Hz) Speed Power (W) Airflow (m³/h) Static Pressure (Pa) Noise (dB)
KCQR - 150 220 - 50 H/L 99/76 150/120 200/170 37/35
KCQR - 350 220 - 50 H/L 200/160 350/250 230/200 41/39
KCQR - 500 220 - 50 H/L 226/177 550/400 255/240 42/40

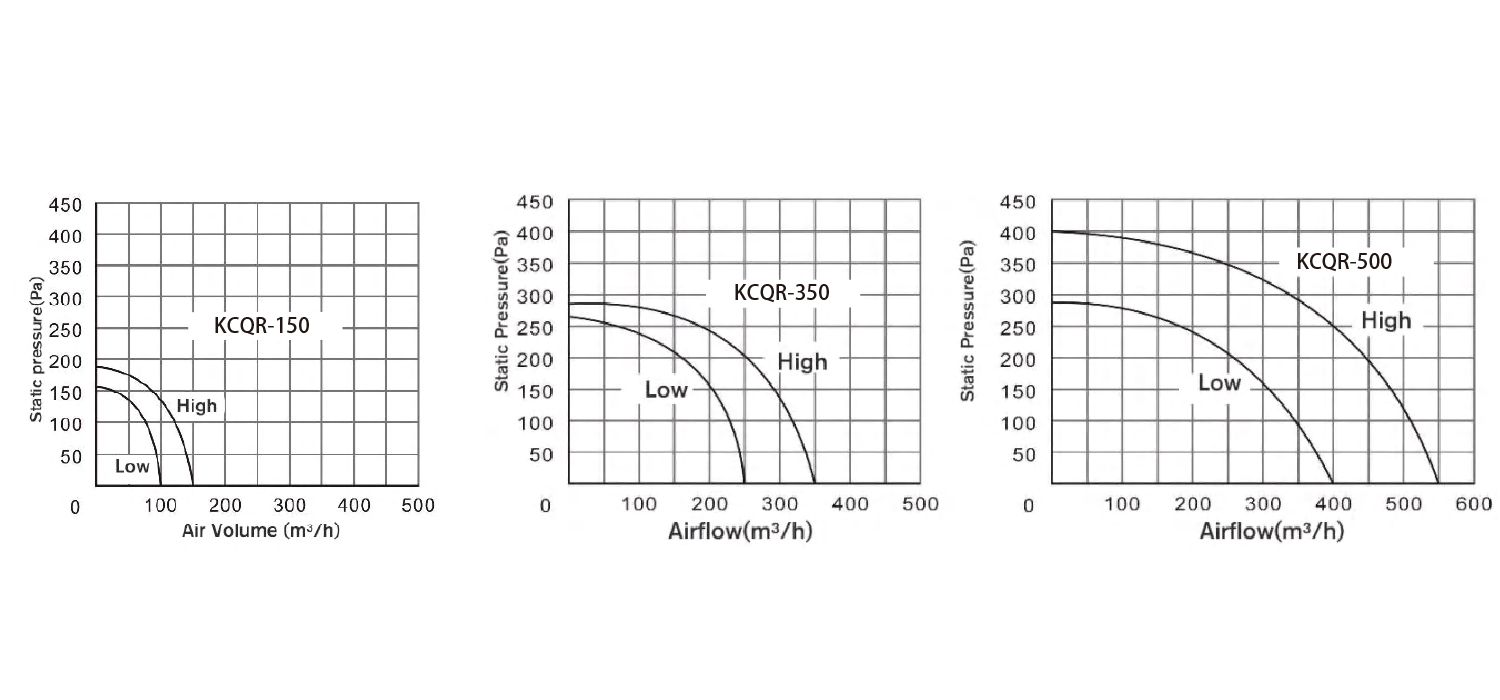

Curves:

Low energy whole house heat recovery unit with a high-efficiency heat exchanger (up to 90%) to provide a constant supply of fresh tempered air into the living spaces.

With an ERV, you can keep the windows closed and the air-conditioning on without worrying about the indoor air quality because it can keep the air fresh by supplying outdoor air while exhausting the stale indoor air.

When an ERV introduces fresh air with a maintained temperature and humidity into an enclosed space, it dilutes the concentration of virus particles in the air with a filter that removes stale air during air change.


energy ventilation recovery
mechanical heat recovery ventilation
hrv ventilators
erv energy recovery ventilator

Recommended Products

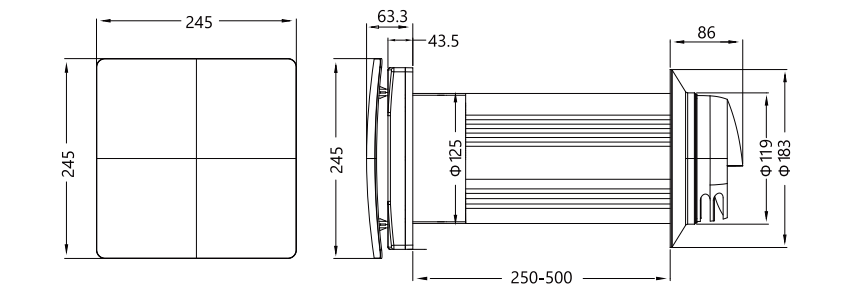

Single-room HRV VT501
