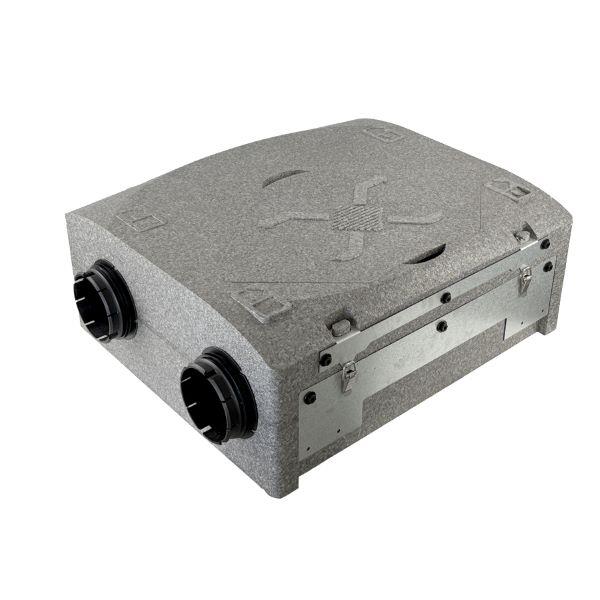

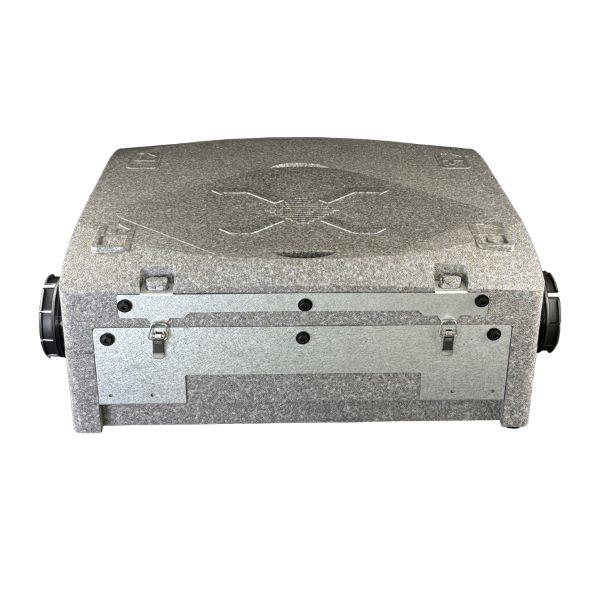

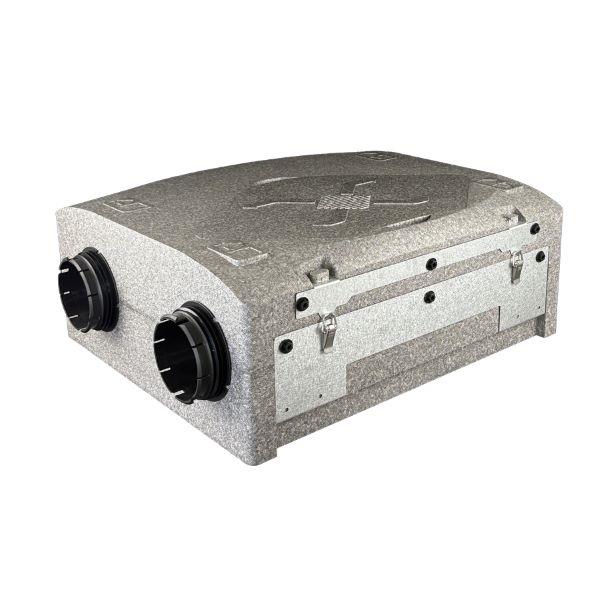

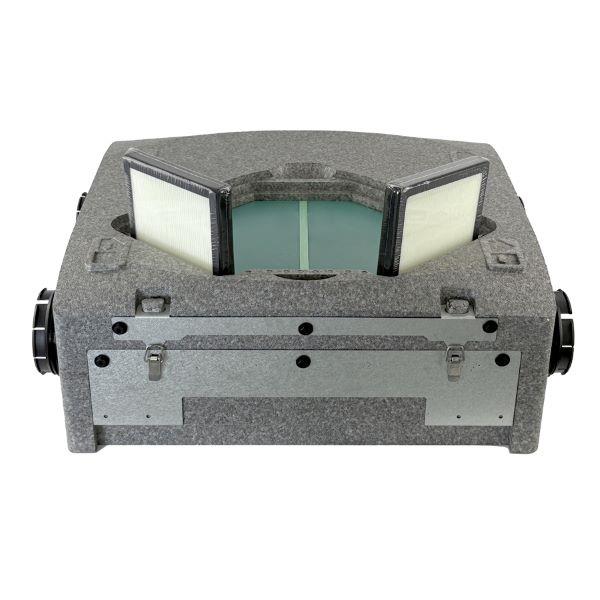

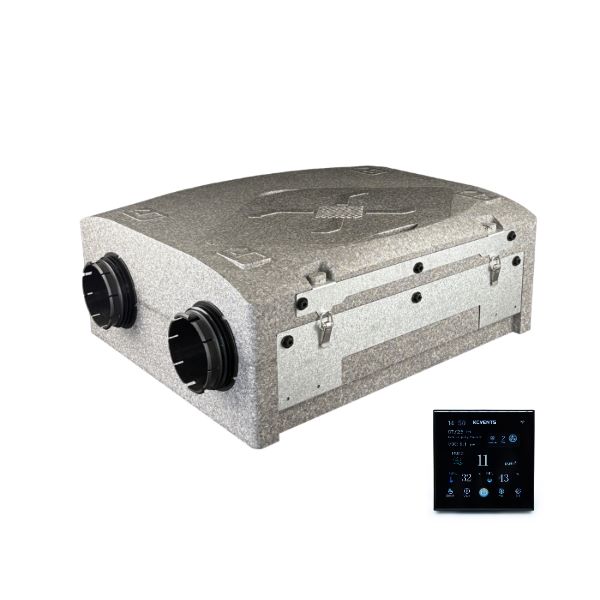

EPP Energy Recovery Ventilator

1. Our EPP Energy Recovery ventilator adopt the latest European design concept. The casing is molded from the new eco - friendly material EPP. Compared with traditional fresh air fans with sheet metal casings, this product has remarkable advantages such as light weight, excellent thermal insulation performance, and low - noise operation.

2.High-Efficiency Energy Recovery – Recovers heat and moisture to lower heating/cooling costs and maintain indoor comfort.

3.Eco-Friendly EPP Housing – Durable, lightweight, and provides superior thermal insulation.

4. Quiet Performance – Ensures a comfortable and noise-free environment.

5.Flexible Installation – Compact design, easy to install in residential or commercial spaces.

6.Smart Control Options – Supports advanced sensors for automatic operation and IAQ optimization.

Enquiry Catalog Manual

Parameter table:

Model Voltage Air Volume (m³/h) Power (W) Noise (dB) Static Pressure (Pa) Size (mm)
CH-EP-150 220V50Hz 150 98 28 100 650 * 575 * 260
CH-EP-250 250 134 33 120
CH-EP-250L 250 140 33 110
CH-EP-150DC 150 90 26 100
CH-EP-250DC 250 120 31 120
CH-EP-250LDC 250 130 32 110
CH-EP-350 350 190 34 140 1120 * 575 * 260
CH-EP-350L 350 200 36 130
CH-EP-350DC 350 160 33 140
CH-EP-350LDC 350 170 34 130

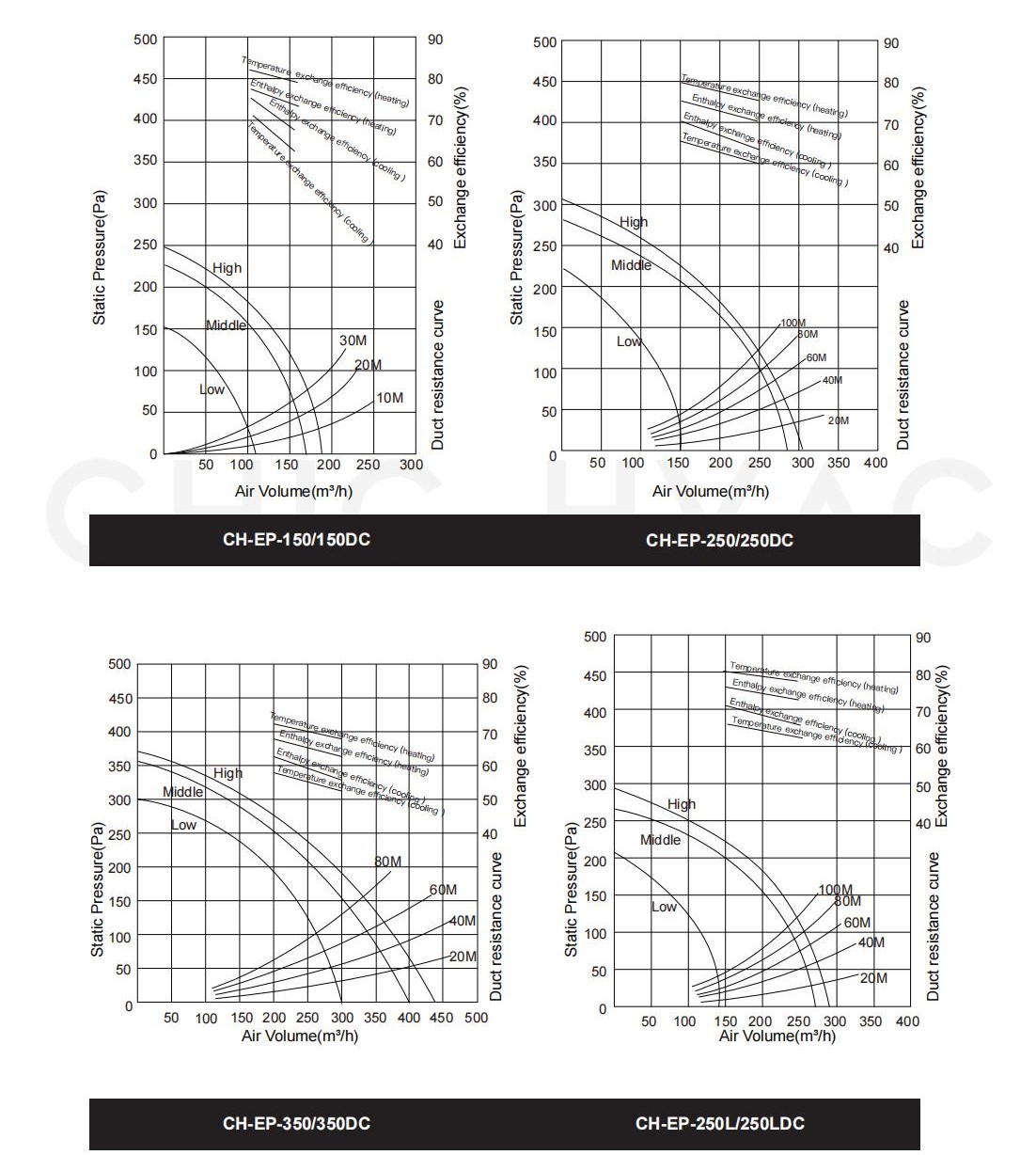

Curves:
