Cross-Flow Air Curtain Q series 11m/s
- Cooling Retention Effects: Air Curtains Prevents cold air to go outside & hot air to come inside.
- Super Sleek Design: Aesthetics that speaks of Slim design & looks apt for any modern environment.
- Resists Ingress of Dirt & Insects: The even air flow pressure helps in keeping away insects.
- Velocity Control Feature: Gives full access to control the mode of air curtain depending on door height.
DESCRIPTION & FEATURES

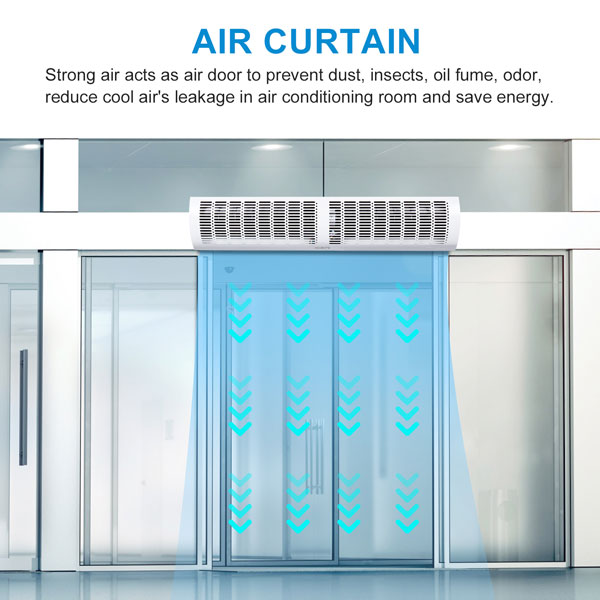

The KC air curtain maintains environmental separation with a light flow of air, that not only results in lowered energy costs but also helps in preventing air borne contaminants & deterring flying insects from moving from one open space to another-enhancing sanitation & hygiene. Applications Entrance of Industries, Restaurants, Offices, Malls & other commercial places.
（Mobile terminal：Slide the picture to the right to see more）

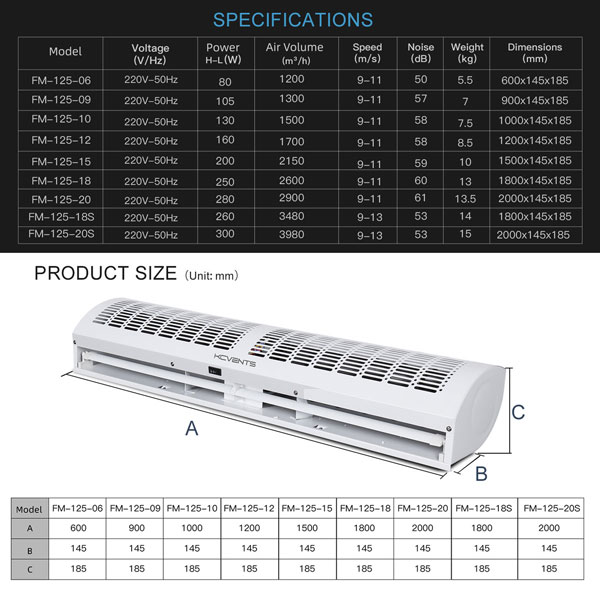

| Model | Voltage (V~Hz) | Power (w) | Airflow (m³/h) | Speed (m/s) | Noise (dB) | Weight (kgs) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| FM-125-06 | 220-50 | 80 | 1200 | 9-11 | 50 | 5.5 | 600x145x185 |
| FM-125-09 | 220-50 | 105 | 1300 | 9-11 | 57 | 7.0 | 900x145x185 |
| FM-125-10 | 220-50 | 130 | 1500 | 9-11 | 58 | 7.5 | 1000x145x185 |
| FM-125-12 | 220-50 | 160 | 1700 | 9-11 | 58 | 8.5 | 1200x145x185 |
| FM-125-15 | 220-50 | 200 | 2150 | 9-11 | 59 | 10 | 1500x145x185 |
| FM-125-18 | 220-50 | 250 | 2600 | 9-11 | 60 | 13 | 1800x145x185 |
| FM-125-20 | 220-50 | 280 | 2900 | 9-11 | 61 | 13.5 | 2000x145x185 |
- Cooling Retention Effects: Air Curtains Prevents cold air to go outside & hot air to come inside.
- Super Sleek Design: Aesthetics that speaks of Slim design & looks apt for any modern environment.
- Resists Ingress of Dirt & Insects: The even air flow pressure helps in keeping away insects.
- Velocity Control Feature: Gives full access to control the mode of air curtain depending on door height.
