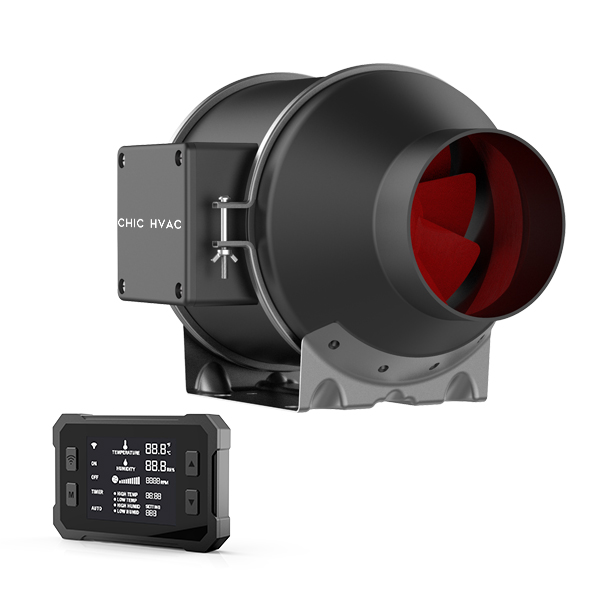

EC Inline Fan With Stepless Speed

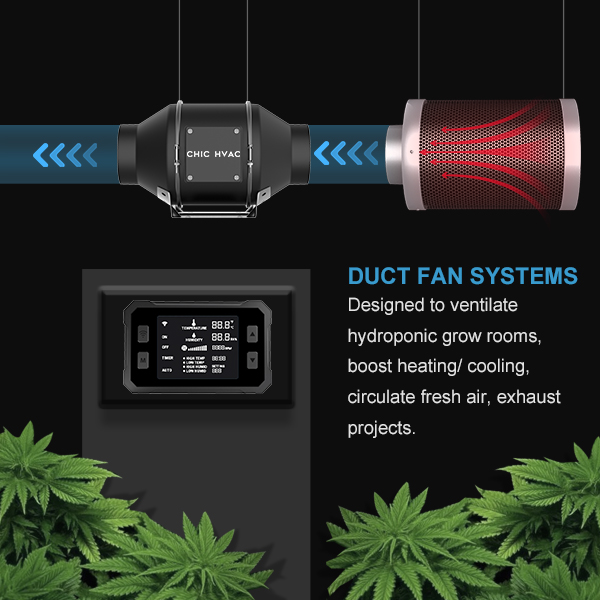

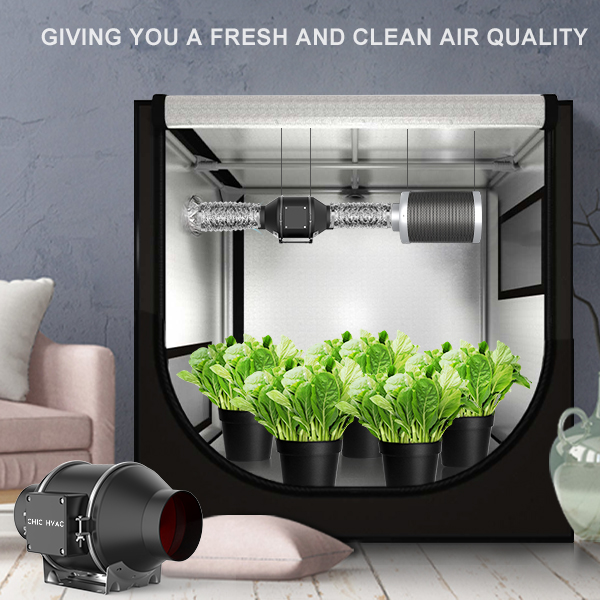

  1. Designed to ventilate grow tents, transfer heating/cooling to rooms, circulate air, exhaust odors, and cool AV racks.

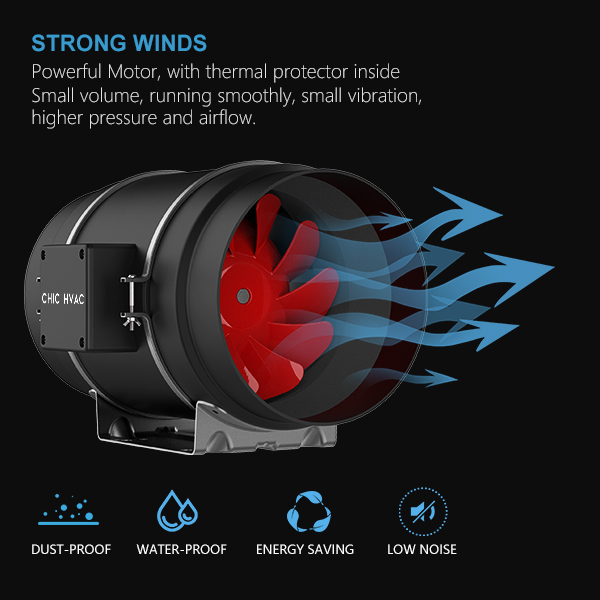

  2. Mixed flow design combined with an EC-powered motor for a truly quiet and energy efficient performance.
  3. Kit also includes corded AC power adapter, installation manual, and all necessary mounting hardware.

Enquiry Catalog

Product Table(inch):

Model Dimensions  Diameter   Voltage Power (W) Speed (RPM) Airflow (CFM) Noise (dB) Power Cord Length  Fan to Controller Wire Length

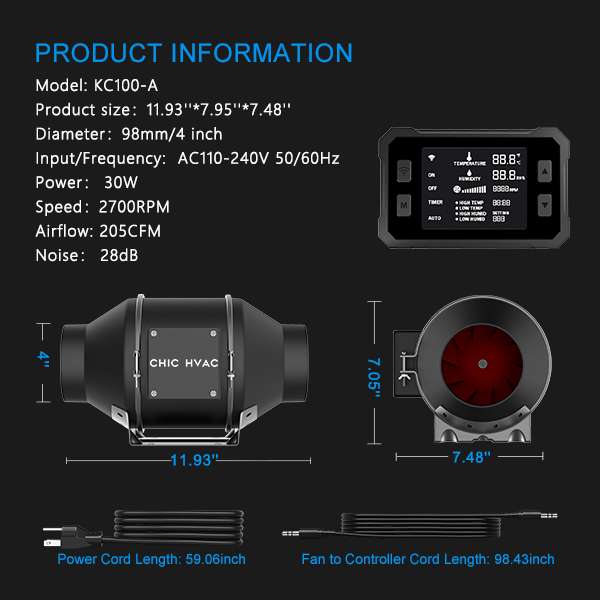

KC100 - A 11.93*7.95*7.48 4 AC110 - 240V 50/60Hz 30 2700 205 28 59.06 98.43

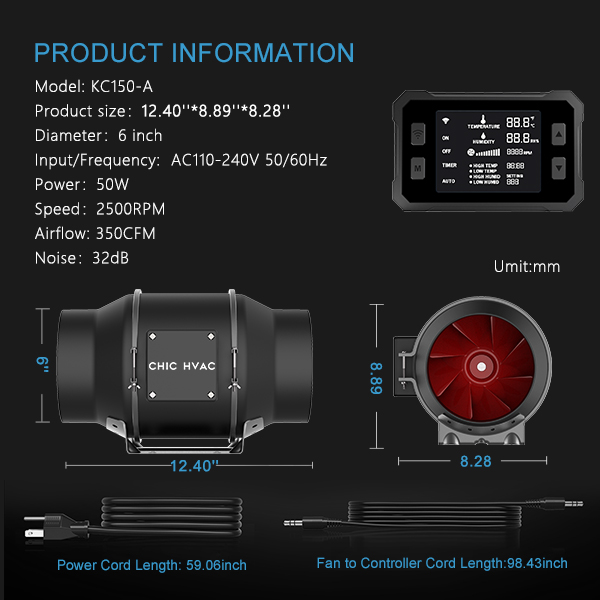

KC150 - A 12.40*8.89*8.28 6 AC110 - 240V 50/60Hz 50 2500 350 32 59.06 98.43

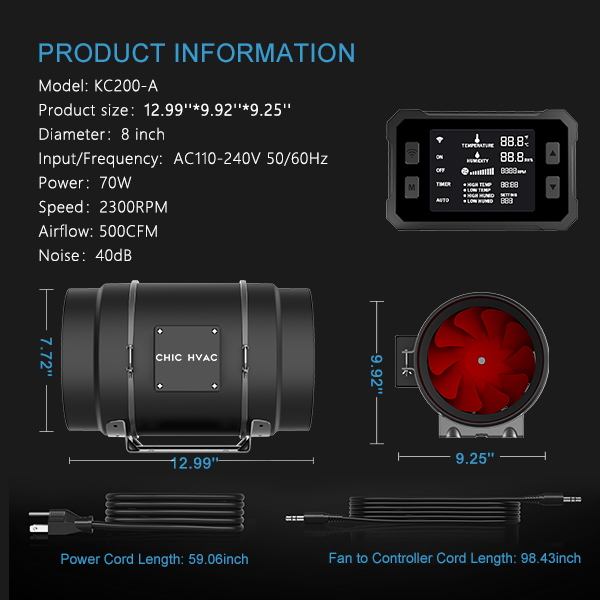

KC200 - A 12.99*9.92*9.25 8 AC110 - 240V 50/60Hz 70 2300 500 40 59.06 98.43

Curves:
